Paint-Booth Maintenance

Maintenance protects coating quality, worker exposure control, fire safety, environmental control and production reliability at the same time. Overspray residue, loaded filters, air leakage, loose drives, blocked pressure taps, damaged seals or bypassed interlocks can interact. A useful programme therefore combines routine care, condition evidence, competent specialist work and a controlled functional release. [S171; S172; S175; S195]

Chapter objectives

After this chapter, the reader should be able to:

• map the complete booth and its supporting systems;
• plan maintenance around chemical, electrical, pressure, thermal and mechanical hazards;
• apply post-spray clearance, shutdown, isolation and verification;
• clean overspray residue without creating a new fire or exposure hazard;
• inspect the enclosure, doors, seals, glazing and access routes;
• maintain filters, gauges, fans, drives, plenums and ductwork;
• coordinate make-up-air, heating, electrical and fire-protection specialists;
• maintain water-wash equipment where fitted;
• distinguish compressed process air from breathing-air support;

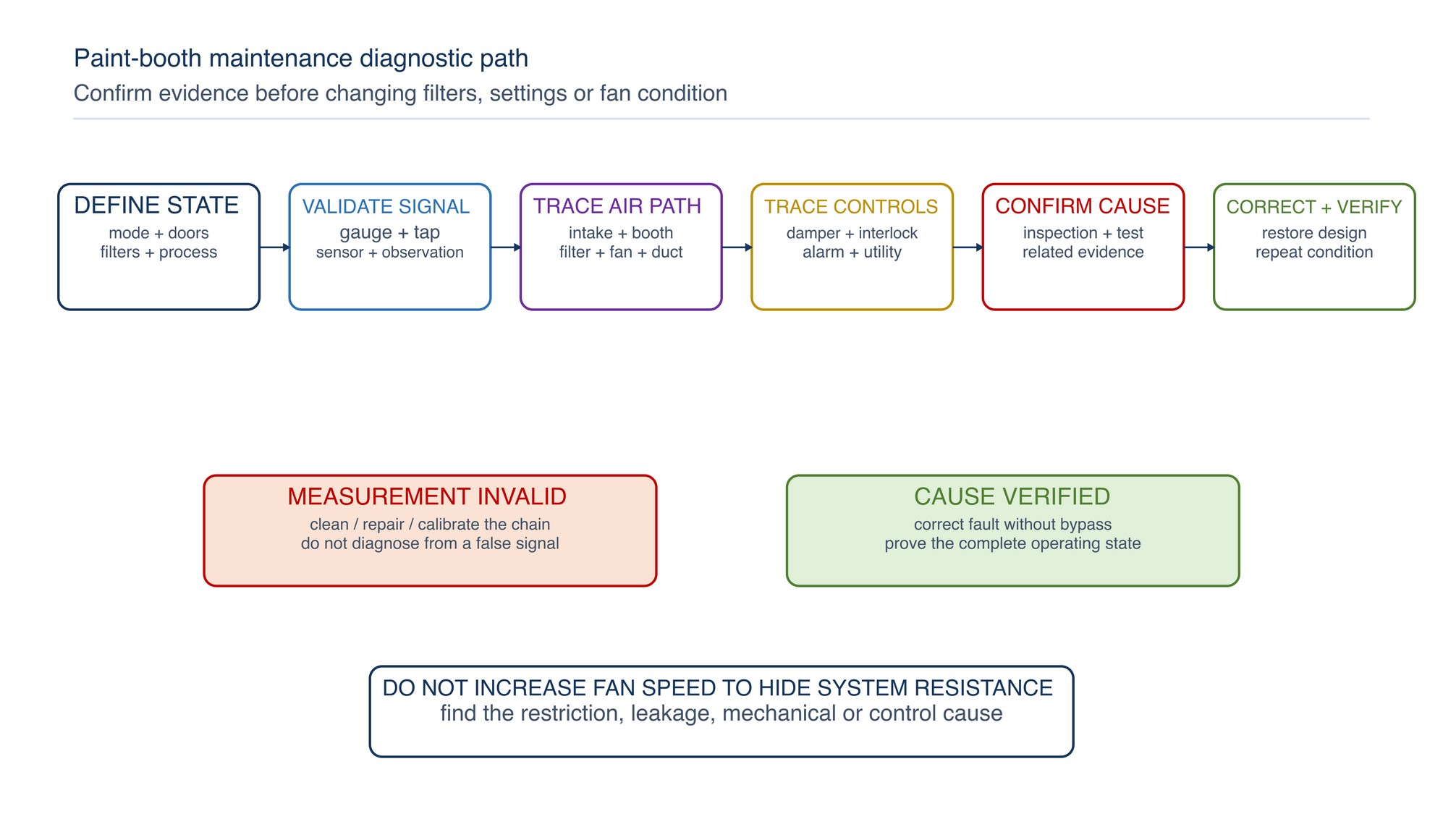

• diagnose airflow, contamination, noise, leakage and control faults systematically; and
• complete a controlled return-to-service check.

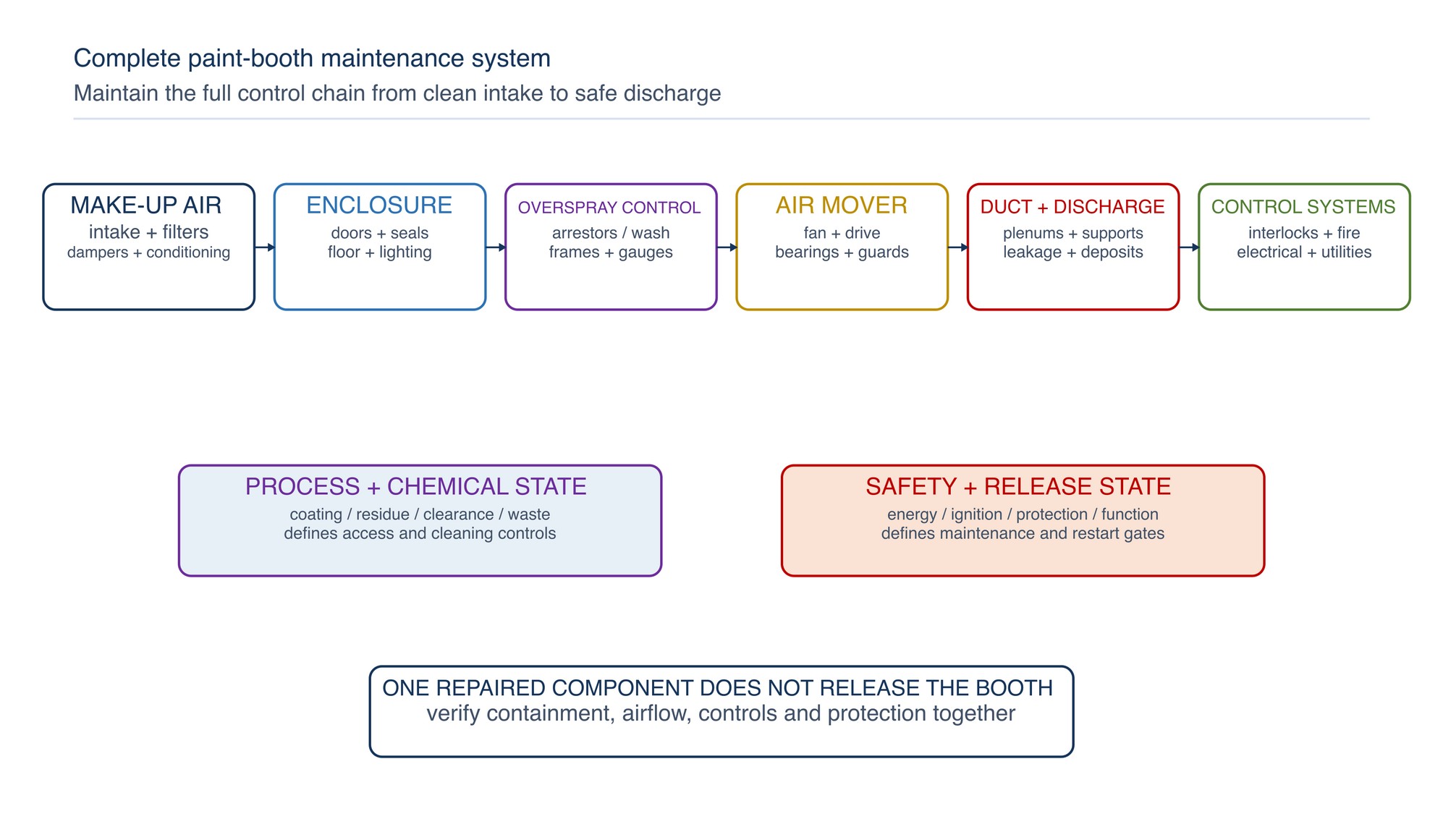

A fault in one zone can appear elsewhere. Low booth flow may come from a loaded intake, closed damper, exhaust-filter resistance, slipping belt, wrong fan rotation, duct obstruction or open access panel. Diagnose from the complete airflow route before changing settings or components.

Confirm before planning work:

• booth identity, manufacturer, model and serial information;
• process type, coating families and normal operating modes;
• airflow arrangement and intended direction;
• drawings, schematics, manuals and previous modifications;
• filter stages and declared installation arrangement;
• fan, motor, drive, damper and make-up-air configuration;
• heating, curing, water-wash or recovery equipment where fitted;
• electrical classification, grounding and control philosophy;
• fire-detection, alarm, sprinkler or suppression interfaces;
• pressure, airflow, clearance-time and condition baselines; and
• maintenance history, recurring defects and responsible specialists.

Do not identify components from appearance alone or assume a similar booth uses the same sequence. When an exact part, filter, pressure, airflow, temperature, clearance time, lubricant, adjustment or test value is required, Refer to the product label, Technical Data Sheet, or MKTECH representative.

• Operator care: approved housekeeping, visual checks, gauge observation and defect reporting.
• Routine maintenance: planned inspection, filter service, mechanical checks and cleaning within established authority.
• Competent technical work: fan, drive, instruments, controls, isolation, testing and system balancing.
• Specialist work: hazardous-area electrical equipment, burners, gas trains, fire protection, breathing air and statutory or authority-controlled examinations.

The person who can clean a booth safely may not be competent to adjust a burner, test an interlock or alter a fan. Define who may isolate, dismantle, test, override for diagnosis and authorise release.

Maintenance can expose electrical energy, fan inertia, compressed air, hot surfaces, fuel, automatic dampers, stored pressure, elevated work and hazardous coating residue. Review the actual job before shutdown.

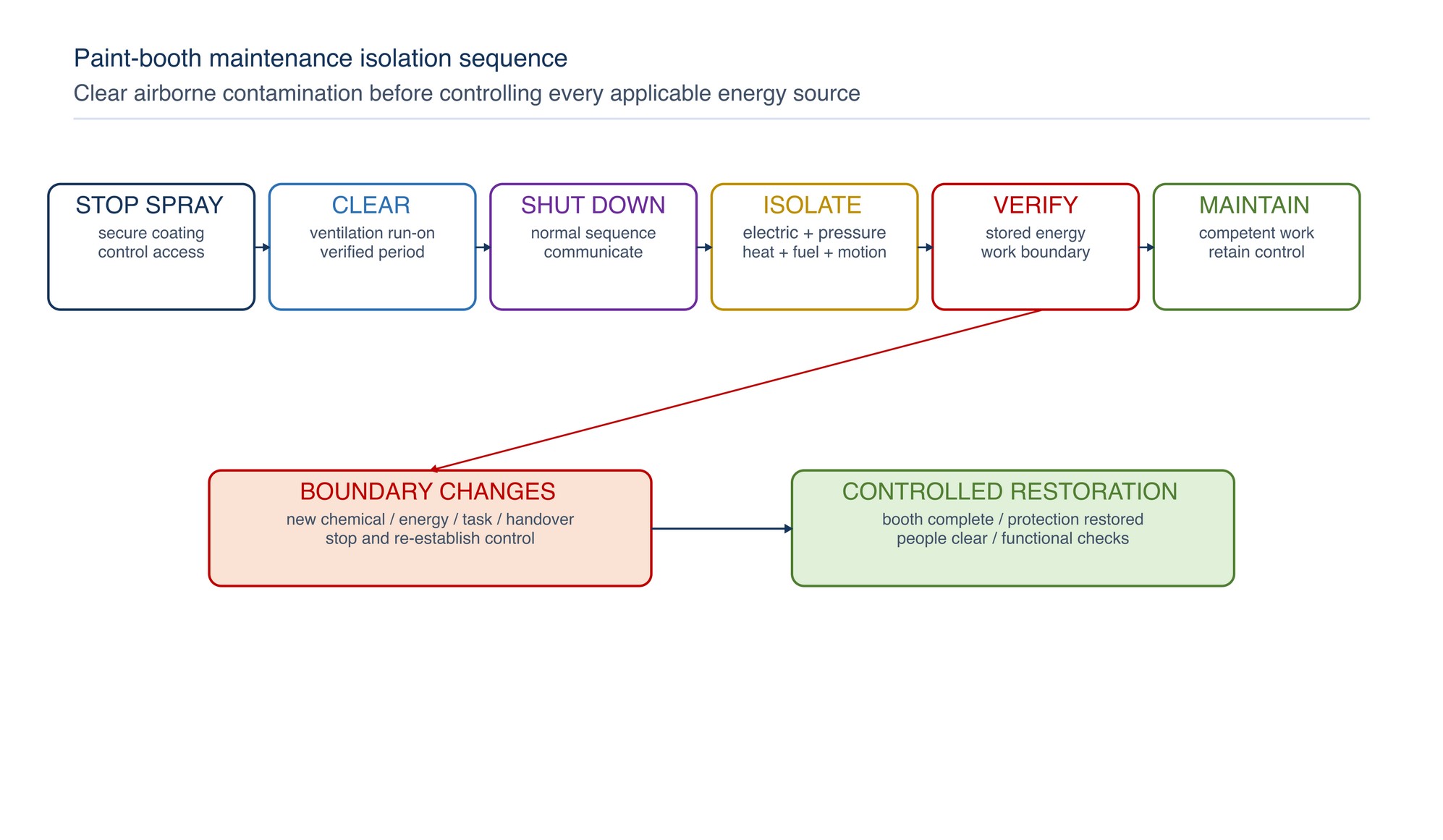

Use this sequence:

1. stop spraying and secure coating delivery;
2. keep ventilation operating for the established post-spray clearance period;
3. restrict access while airborne contamination may remain;
4. shut down through the normal sequence;
5. isolate all applicable energy and material sources;
6. release or secure stored energy;
7. verify isolation at the work location; and
8. retain control until the task and restoration are complete.

Do not enter early because visible mist has disappeared. Clearance depends on the booth, airflow, loading and test basis; HSE guidance illustrates why verified clearance and leakage observation matter for hazardous spray processes. [S176; S177]

Overspray deposits may be combustible, chemically hazardous, reactive with other coatings or easily dispersed during cleaning. Identify the coating and cleaner before disturbing residue.

Prefer methods that collect residue at source and minimise airborne dust or solvent vapour. Use approved scrapers, non-sparking or otherwise suitable tools where required, compatible cleaning materials and controlled waste containers. Never use compressed air to scatter dry deposit. Do not use an unapproved flammable cleaner, create sparks by grinding hardened residue, or mix wastes that may react or self-heat.

Maintain clear access around the booth and remove accumulated combustible residue before it affects filters, lights, sprinklers, fan parts or exits. [S175; S185]

Check:

• panel joints, fasteners, corrosion and impact damage;
• floor condition, grating, pits and drainage;
• penetrations for pipes, cables, conveyors and hoses;
• loose masking, temporary sheet or combustible lining;
• overspray build-up on walls, ceilings and ledges;
• sharp edges and damaged internal finishes;
• pedestrian and product access routes; and
• evidence of spray escaping through unintended openings.

Restore cleanability and containment. Do not seal a required air path, drain or pressure-relief feature while closing an unintended gap.

Doors should close freely, latch correctly and preserve their intended airflow and emergency function. Inspect hinges, rollers, tracks, handles, vision panels, perimeter seals and door interlocks.

Clean glazing and light panels before heavy residue raises temperature, reduces visibility or encourages operators to open doors during spraying. Replace cracked or unsuitable transparent panels through the specified arrangement. Do not defeat a door switch to keep production running.

Filter condition must be read with airflow, pressure, physical integrity and downstream cleanliness. Chapters 033–035 give detailed selection and change-out guidance.

During booth maintenance:

• confirm stage identity and airflow direction;
• inspect frames, clips, gaskets and supports;
• look for bypass, collapse, breakthrough and uneven loading;
• clean pressure taps and verify tubing condition;
• check gauge zero and response by the specified method;
• record comparable readings in the defined booth state; and
• control contaminated media and residue as process waste.

Do not substitute a filter only because it fits the opening. Capture duty, resistance, holding capacity, coating compatibility, installation and disposal basis all matter. [S178; S195]

Isolate and secure rotating equipment before access. Inspect:

• fan blades or wheel for deposits, damage and contact;
• shaft alignment, play and seal condition;
• bearings for noise, heat, lubrication and mounting;
• belts for wear, contamination, tension and matched condition;
• pulleys, keys, couplings and guards;
• motor mounts, flexible connectors and vibration isolators;
• rotation after electrical work; and
• inlet and outlet conditions that disturb flow.

Do not scrape a fan unevenly, add balance weights by trial, fit unmatched belts or increase fan speed to hide system resistance. Fan cleaning and repair should preserve clearances, alignment, balance and the applicable ignition-control arrangement. [S175; S179; S180; S197]

Follow the route from the booth to the final discharge. Check access doors, joints, flexible sections, supports, drains, corrosion, internal deposits, leakage marks and foreign objects. Confirm that maintenance has not left tools, rags or loose material inside.

Unexpected deposit downstream of a filter can indicate bypass, damage or unsuitable capture. A crushed flexible connection, closed damper or accumulated residue can raise system resistance. Repair the cause and verify the full path rather than adjusting only the fan.

Inspect outdoor screens, weather louvres, dampers, filters, coils, fans, drives, plenums and controls. Water entry, blocked intakes or a stuck damper can disturb booth balance and carry contamination into the finish.

After relevant maintenance, compare pressure relationships, airflow direction and containment with the established operating basis. A closed door, open service panel or changed filter stage can alter the result. Do not balance the booth by permanently opening an unintended gap.

Heating and curing equipment may include electric heaters, burners, fuel trains, heat exchangers, temperature limits, airflow-proving devices, purge sequences and high-temperature shutdowns. These are specialist systems.

Keep burners, heaters and heat-transfer surfaces free of incompatible residue. Inspect visible damage, leakage, wiring, sensors, fans and seals within authorised scope. Never bypass purge, airflow proof, flame supervision, high-limit or door-control functions. Test affected safety functions before heating or spraying is released.

Electrical suitability depends on equipment location, enclosure, wiring method, coating process and hazardous-area design. Maintenance must preserve the installed classification and certification basis.

Check for damaged luminaires, cracked panels, loose glands, open covers, overspray on cooling surfaces, unauthorised sockets, portable equipment, degraded cables and altered control boxes. Verify grounding and bonding through the applicable competent test method. Do not replace a motor, light, switch, sensor or fan component with a general-purpose item simply because its voltage and size match. [S174; S175]

Controls may coordinate ventilation, spraying, heat, conveyors, doors, pressure, filter alarms, fire systems and emergency stops.

Record temporary overrides used for diagnosis, control access to them and remove them before release.

Sprinklers, suppression, detection, alarms, dampers and system shutdown interfaces should be inspected and serviced through the responsible fire-protection programme. Booth cleaning and repairs must not coat, paint over, obstruct, isolate or damage these devices.

Before taking protection out of service, use the site's impairment-control process. Control ignition sources and spraying status, notify responsible persons and restore protection promptly. Confirm that filter changes, new duct access, curtains or stored items do not obstruct the intended protection.

Water-wash booths may include pumps, strainers, tanks, troughs, weirs, nozzles, eliminators, level controls, treatment chemicals and sludge removal.

Inspect circulation, leakage, blockage, corrosion, foam, odour, deposit and pump condition. Maintain the water curtain or wash pattern through the specified method. Control chemistry from measured system condition and coating compatibility; do not add treatment chemical by colour or habit. Isolate pumps and control chemical exposure before cleaning tanks or removing sludge.

Classify wastewater and sludge from the actual materials and process. [S188; S189]

Spray-gun air, control air and supplied breathing air are different services. Trace each line, connection, filter and regulator so cross-connection is prevented.

Maintain process-air traps and filters to protect coating quality. Maintain breathing-air supply, alarms and hoses through the dedicated respiratory-protection programme and specified test method. Do not use an ordinary shop-air assumption as evidence that breathing air is suitable.

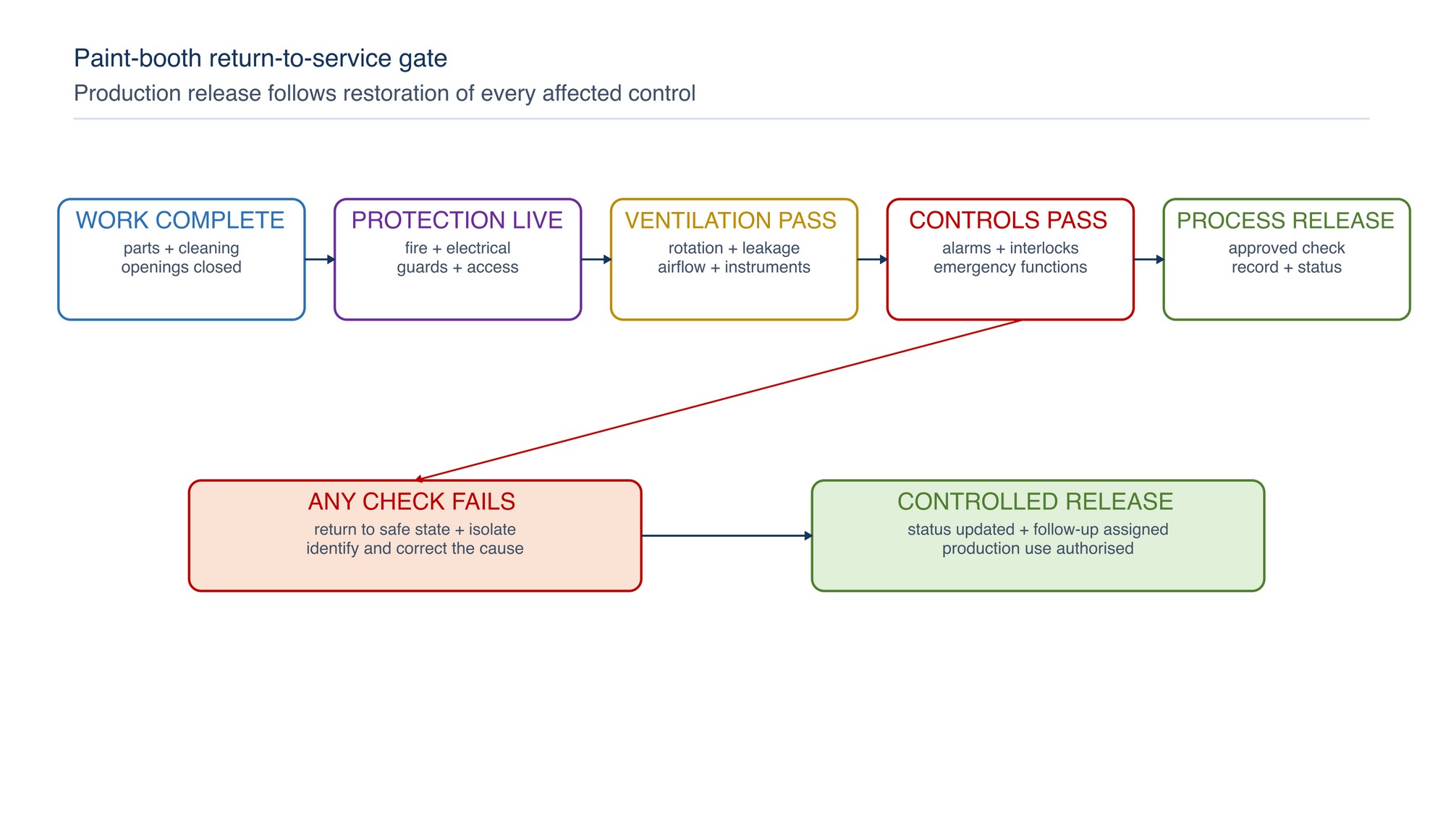

1. confirm the work scope and parts are complete;
2. remove tools, residue, temporary covers and waste;
3. restore panels, doors, seals, filters, guards and access covers;
4. confirm fire-protection systems are in service;
5. clear people and remove maintenance isolation through the authorised process;
6. start ventilation in the normal sequence;
7. check rotation, leakage, noise, vibration and instruments;
8. verify airflow direction, containment and alarms;
9. test affected interlocks and emergency functions;
10. test heating or wash systems separately where applicable;
11. conduct the approved process check; and
12. record release, readings and follow-up action.

Any abnormal result returns the booth to a safe state and investigation.

• [ ] Booth identity, process duty, drawings and maintenance instructions are confirmed.
• [ ] Spraying has stopped and the established clearance sequence is complete.
• [ ] Electrical, pressure, thermal, mechanical, fuel and material energy are controlled.
• [ ] Residue and cleaning chemicals are identified and handled safely.
• [ ] Enclosure, floor, doors, seals, glazing and access routes are serviceable.
• [ ] Intake, diffusion and exhaust filters are correctly installed and sealed.
• [ ] Pressure taps, tubing, gauges and airflow indicators are serviceable.
• [ ] Fan, shaft, bearings, drive, guards and flexible connections are serviceable.
• [ ] Plenums, ducts, supports, access doors and discharge are clear and intact.
• [ ] Make-up-air and booth balance checks are satisfactory.
• [ ] Heating, curing or water-wash equipment passes the applicable specialist checks.
• [ ] Electrical classification, grounding and enclosure integrity are preserved.
• [ ] Alarms, interlocks, emergency stops and run-on sequence pass.
• [ ] Fire-protection impairment is closed and protection is restored.
• [ ] Process air and breathing-air systems remain correctly separated and controlled.
• [ ] Functional and process verification pass before production release.
• [ ] Work, parts, readings, defects and next maintenance action are recorded.

The following chapter, Maintenance Planning, appears on the next page of the printed handbook (page 490), outside this chapter extract.
